Description

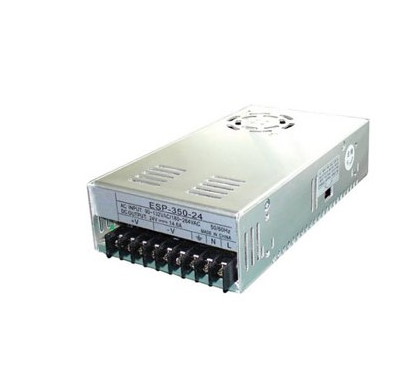

350 Watt Single Output Switching Power Supply
Size (L×W×H): 215mm x 115mm x 50mm
Approval: CB
Product feature：
– High reliability
– AC input selectable by switch
– Protections: Overload /Short circuit/Over voltage
– Forced air cooling by built-in DC fan
– 100% full load burn-in test
– One year warranty
| Specifications: | |
| AC input voltage | 90~132VAC 180~264VAC |
| Input frequency | 50~60Hz |
| Input current | 6.5A/4A at 115VAC/230VAC |
| Inrush current | 60A@230VAC |
| Hold up time | 20 ms at 230VAC |
| Overload protection | 105~150% AC restart |
| Operating temperature | 0 to 40°C |
| Storage temperature | -20°C to 40°C |
| Operating humidity | 5% to 90% RH non-condensing |
| Storage humidity | 5% to 95% RH non-condensing |
| Safety standard | EN60950-1 CE Mark |
| EMC standards | EN55022 Class B EN61000-3-2,3 ENV55024 EN61000-4-2,3,4,5,6,8,11 |
| Withstand voltage | I/P-O/P:3KVAC/1min/5mA |
| I/P-FG:1.6KVAC/1min/5mA | |
| MTBF | 105 Hours per MIL-HDBK-217D |
| Weight | 1.1Kg/pcs |
|
P/N |
Output |
Tol. |
R&N |
Effi. |
Load Regulation |
Line Regulation |
|
SW-ESP-350-5 |
5V,0~50A |
2% |
150mV |
74% |
±1% |
±2% |
|
SW-ESP-350-12 |
12V,0~29A |
1% |
150mV |
75% |
±1% |
±1% |
|
SW-ESP-350-24 |
24V,0~14.6A |
1% |
150mV |
84% |
±1% |
±1% |
|
SW-ESP-350-48 |
48V,0~7.3A |
1% |
240mV |
84% |
±1% |
±1% |
