Description

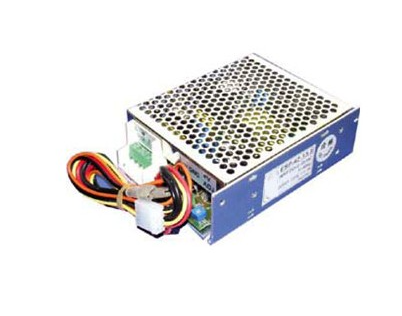

Power Supply With Charging Function 42 Watt (Full range input)
Size(L×W×H): 130mm×98mm×42mm
Approval: CE
Product features:
– AC input / full range
– Charger for lead-acid batteries
– Power on indication
– Cooled by air convection
– Protection for deeply discharged battery
– Protections: Overload/ Short circuit
– Metal case, small size, charging in limited current
– 100% full load burn-in test
– Open frame models available:102mmx60mmx40mm
– One year warranty
| Specifications: | |
| AC input voltage: | 100VAC~240 VAC |
| Input frequency: | 47~63Hz |
| Inrush Current : | 40A@ 220VAC |
| Hold up time: | 20 ms at 120VAC |
| Overload protection: | 105%-180% of the rated maximum output power |
| Working temperature: | 0 to 45°C |
| Safety standard: | GB4943-2001 |
| EN60950 | |
| EMC standard: | EN55022 |
| Withstand Voltage : | I/P-OP:3KVAC/min |
| I/P-FG:1.5KVAC/min | |
| O/P-FG: 0.5KVAC/min | |
| Connection : | I/P:JTB552-00-1-05-3-M9 |
| O/P:JTB552-00-1-02-3-M9 | |
| MTBF: | 105 h at 25°C |
| Weight: | 0.5Kg/pcs (External case type) 0.36Kg/pcs (PCB type) |
|
P/N |
DC Output |
Tol. |
R&N |
Effi. |
Load Regulation |
Line Regulation |
|
SW-ESP-42-13.8A |
13.8VDC 0~3A |
±2% |
140mV |
80% |
±2% |
±1% |
|
SW-ESP-42-27.6A |
27.6VDC 0~1.5A |
±2% |
240mV |
80% |
±2% |
±1% |
|
SW-OP-42-13.8 |
13.8VDC 0~3A |
±2% |
140mV |
80% |
±2% |
±1% |
