Description

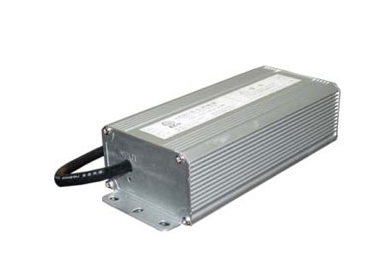

LED driver 100 Watt Single Output
Size(L×W×H): 220mm×60mm×55mm
Product features:
– Universal AC input/ full range
– High efficiency, high reliability
– Protections: Over current /Short circuit/Over voltage / Over temperature/Under voltage
– Soft start over voltage protection when auto-restart
– Low standby power: ＜5W
– Waterproof level: ＞IP65
– One year warranty
| Specifications: | |
| Input voltage | 100~264VAC |
| Input frequency | 47/63Hz |
| Inrush current | 10A@220VAC cold start |
| Overload protection | 105~125% auto-restart |
| Start, hold up time | 150ms,20ms |
| Operating temperature | -10°C~+50°C |
| Storage temperature | -20°C to 85°C |
| Safety&EMC standards | TUVEN60950-1 |
| UL60950-1 | |
| Withstand voltage | I/P-O/P:1.5KVAC,1min |
| I/P-FG:1KVAC,1min | |
| O/P-FG:0.5KVAC,1min | |
| MTBF | 105 h |
| Weigh | 0.58kg/pcs |
|
P/N |
Output current |
Output current |
R&N |
Effi. |
|
SW-LPS-100 |
30-36V |
2.7A |
360mV |
91% |
