Description

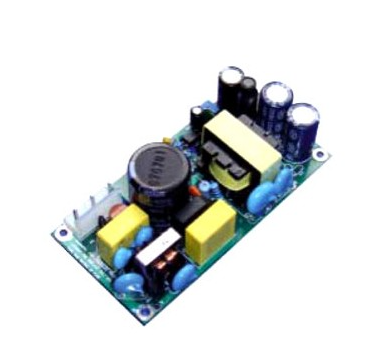

Open-Frame Power Supply 30 Watt Single Output
Size(L×W×H): 100mm×50mm×30mm
Product features:
– Universal AC input/ full range
– Work temperature -40 ~85 °C
– Protections: Overload /Over voltage / Over temperature/Short circuit
– 100% full load burn-in test
– One year warranty
| Specifications: | |
| AC input voltage: | 90~264V AC |
| Output voltage | 24V |
| Input frequency: | 47~63HZ |
| Operating Temperature: | -40 ~85 °C |
| Storage Temperature: | -40 to 90 °C |
| Relative humidity: | 5% to 95% |
| Load | 0~1.25A |
| R&N | ≤240mV |
| Efficiency | ＞82% |
| Safety Standards: | IEC60950 IEC60065 UL60950 GB4943-2001 |
| EMC Standards: | EN55022 EN55013 EN55020 EN55024 EN61000-3-2 EN61000-3-3＋A1 EN61000-4-5 EN61000-4-11 EN61000-4-4 EN61000-4-2 |
| MTBF: | 105 h at 25°C |
| Weight: | 0.11Kg / pcs |
