Description

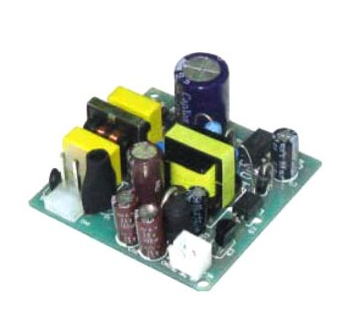

Open-Frame Power Supply 6 Watt Single Output
Size(L×W×H): 50mm×50mm×30mm
Product features:
– Universal AC input/ full range
– Cooling by air convection
– Protections: Overload /Over voltage / Over temperature/Short circuit
– 100% full load burn-in test
– One year warranty
Specifications: | |
AC input voltage: | 90~264V AC |
Input frequency: | 47~63HZ |
Inrush Current: | 30A@230 VAC |
Hold-up Time: | 20ms@230VAC |
Overload protection | 105%~180% |
Operating Temperature: | -5 to 40°C |
Storage Temperature: | -20 to 65°C |
Operating humidity: | 0% to 90% RH, non-condensing |
Storage humidity: | 0% to 90% RH, non-condensing |
R&N: | 120mV |
Efficiency: | ≥78% |
Safety & EMC Standards: | EN55022 IEC60950 IEC60065 |
Withstand voltage | I/P-O/P:3KV,1min |
MTBF: | 105 h at 25°C |
Weight: | 0.04Kg / pcs |
