Description

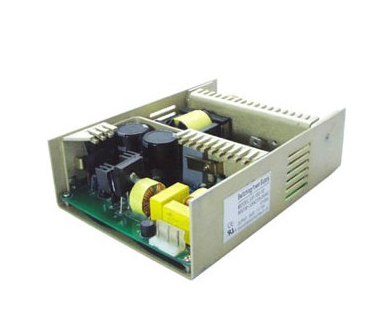

U-Bracket Power Supply 150 Watt Single Output
Size(L×W×H): 178mm×127mm×50mm
Product feature：
– Universal AC input/ full range
– AC input range selectable by switch auto-sensing
– Protection: Overload /Short Circuit
– 100% full load burn-in test
– One year warranty
| Specifications: | |
| AC input voltage: | 88~132VAC 176~264VAC |
| Input frequency: | 47~63Hz |
| Inrush current: | 35A @ 110VAC full load cold start |
| hold up time: | 20ms |
| Over voltage protection: | 110～140% |
| Over load protection: | 105～150% |
| Operating temperature: | 0 to 50°C |
| Safety standard: | UL60950-1 |
| EMC standard: | EN55022 class B |
| MTBF: | 105 h at 25°C |
| Withstand Voltage: | I/P-O/P:3KVAC,1min/5mA |
| I/P-FG:1.5KVAC,1min/5mA | |
| Weight: | 1Kg/pcs |
|
P/N |
DC Output |
Tol. |
R&N |
Effi. |
Load Regulation |
Line Regulation |
|
SW-UP-150-5 |
12V,0-12.5A |
+/-1% |
120mV |
75% |
+/-1% |
+/-1% |
|
SW-UP-150-12 |
15V,0-10A |
+/-1% |
150mV |
75% |
+/-1% |
+/-1% |
|
SW-UP-150-24 |
24V,0-6.3A |
+/-1% |
200mV |
77% |
+/-1% |
+/-1% |
|
SW-UP-150-48 |
48V,0-3.2A |
+/-1% |
200mV |
79% |
+/-1% |
+/-1% |
