Description

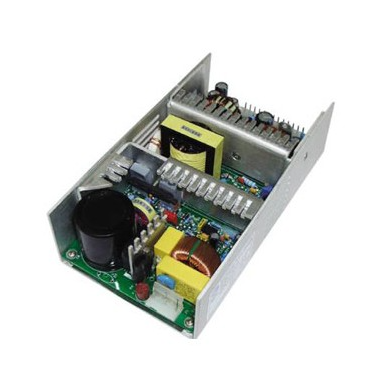

U-Bracket Power Supply 120 Watt Single Output
Size(L×W×H): 178mm×102mm×51mm
Product features:
– Universal AC input/ Full range
– 100% full load burn-in test
– One year warranty
| Specifications | |
| AC input voltage | 90~264VAC Nominal 100~240VAC |
| Input frequency | 47~63Hz |
| Inrush current | 50A @230VAC full load cold start 35A @110VAC full load cold start |
| hold up time | 20ms |
| Working temperature | 0 to 40°C |
| Safety standard | UL1950 CSA60950 |
| EMC standard | Class B (FCC, CISPR 22) |
| MTBF | 105 h at 25°C |
| Withstand Voltage | I/P-O/P:3KV, 1min/5mA I/P-FG:1.5KV,1min/5mA |
| Weight | 0.9Kg/pcs |
|
P/N |
Output |
Tol. |
R&N |
Effi. |
Load Regulation |
Line Regulation |
|
+5VDC 0.8A-8A |
+/-1% |
150mV |
70% |
+/-1% |
+/-1% |
|
|
+12VD 0.6A-6A |
+/-1% |
200mV |
+/-1% |
+/-1% |
||
|
-12VDC 0.08A-0.8A |
+/-5% |
250mV |
+/-5% |
+/-5% |
