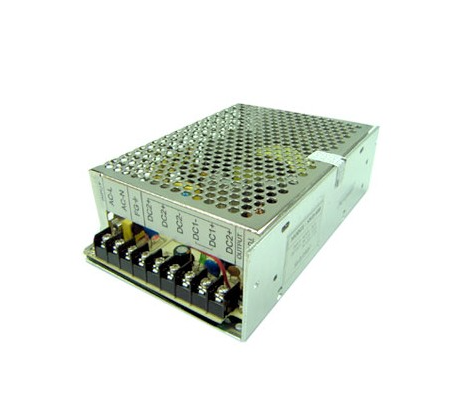

60 Watt Dual Output Switching Power Supply
Size (L×W×H): 159mm × 98mm × 47mm
Product Features:
- Compact size, light weight; Low price, high reliability
- International AC input range; built in EMI filter, Low ripple noise
- Short circuit/over voltage/overload protection
- High efficiency, low working temp
- 100% full load burn-in test
- ISO-9001:2000 manufacturer
- One year warranty
| Input voltage range: | Rated: AC110V/220V, ±15%, Input connection: 9p/9.0-M3 pitch terminal INPUT: AC-L, AC-N, FG | ||
| Rated Input current (typical) | Rated: AC0.40A, Range: AC0.35A~0.55A | ||
| Input current (typical) | 75% | ||
| Input voltage frequency | 47~63Hz | ||
| Inrush current | Cold start: 20A/10mS | ||
| Output range adjust Voltage set point accuracy: |
(DC+5V) | <±0.05V; ±10% output rated voltage | |
| (DC+12V) | < ±0.02; Second Output | ||
| Max. Ripple noise… | (DC+5V) Vnor<5mV; Vp-pmax<50mV | ||
| (DC+12V) Vnor<6mV; Vp-pmax<60mV | |||
| Line / Load regulation | (DC+5V) | Line:±0.5%; Load:±0.5% | |
| (DC+12V) | Line:±0.5%; Load:±1.5% | ||
| Rated output power | 60W | ||
| Efficiency (typical) | (DC+5V) | ±1% | |
| (DC+12V) | ±2% | ||
| Over load protection (output) | 120% | ||
| Input Over voltage protection | AC300V±5V, Range AC0~280V | ||
| Under load protection | AC300V±5V; transform to supply as AC Input OK | ||
| Setup, rise, hold up time | (SETUP TIME)≈200mS; (RISE TIME) ~50mS; (HOLD UP TIME) ~ 20mS | ||
| Withstand voltage | [Input-Output: AC1.5KV, Input-FG: AC1.5KV, Output-FG: AC0.5KV] 50Hz for 1min: Current limit<5mA | ||
| Temperature coefficient | ±0.05 [%/°C] | ||
| Storage temperature | -20°C ~ +85°C; 10% ~ 95%RH. Working Temp.: -10°C~+50°C; 20%~90%RH | ||
| Cooling | Natural cooling | ||
| Dimensions | L159×W98×H47mm³ | ||
| Weight (typical) | 500g | ||
| Safety standard | Design refer to UL 1012 & 1950 requirement | ||
| Output connection | (DC+5V) | 9P/9.0-M3 pitch terminal block; OUTPUT: DC5V+DC5V | |
| (DC+12V) | 12P/9.0-M3 pitch terminal block; OUTPUT: DC12V+*3, DC12V | ||
| Model | Output |
| SWD-60A | 5V, 0.3~6.0A |
| 12V, 0.2~4.0A | |
| SWD-60B | 5V, 0.3~6.0A |
| 24V, 0.2~2.2A |
