Description

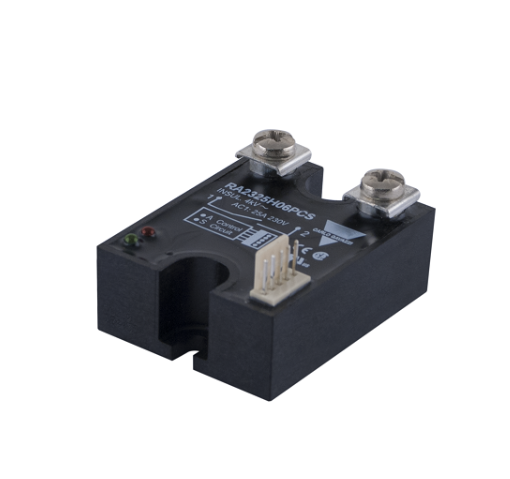

The system monitoring solid state relay (sense relay) provides an alarm output in the event of a circuit failure. Internal circuits monitor:
– line voltage/line current
– correct functioning of the SSR
– SSR input status
The relay is designed for applications where immediate fault detection is required. A red LED indicates an alarm, a green LED indicates DC control supply OK (half LED light intensity) resp. relay switched ON (full LED light intensity).
Features
• System (line and load) monitoring relay
• Zero switching
• Rated operational current: 25, 50 and 110 AACrms
• Rated operational voltage: 120, 230, 400 and 480 VACrms
• High surge current capability
• Alarm output signal
• LED indication for alarm and supply
