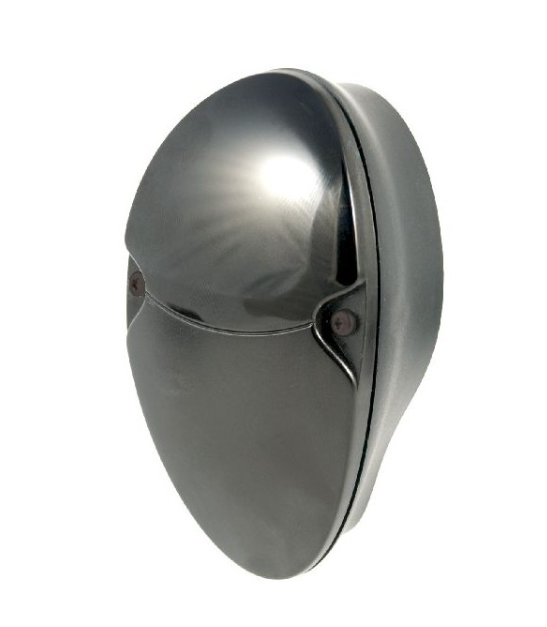

The PD98CNT30QMU sensor is developed specifically for the domestic and industrial door market. The compact size of the outdoor sensor allows easy on-wall-mounting without building the sensor into the wall.

The sensor is easy to use and no sensitivity adjustments are necessary. The spherical lens design is superior to previous design of sensors with built-in parabolic reflectors that had corrosion and dust problems.

Increased safety by build-in: – Sensor test function; the emitter has a built-in test input designed to mute the emitter and thus evaluate the sensor function. Test function is to be activated by the door controller.

High neighbour immunity can be achieved using the synchronization feature. The sensor works with a power-supply from 12 to 24 VAC/DC. The housing is made of Polycarbonate for maximum lifetime and outstanding impact strength.

Features

• Domestic garage door control

• Range 15 m or 30 m

• Modulated, infrared light

• Supply voltage: 12 to 24 VAC/DC

• SPDT relay output

• LED for output indication

• Protection: reverse polarity, transients

• Connection, terminal block

• Emitter mute and gain adjustment

• CE and UL325 approved
