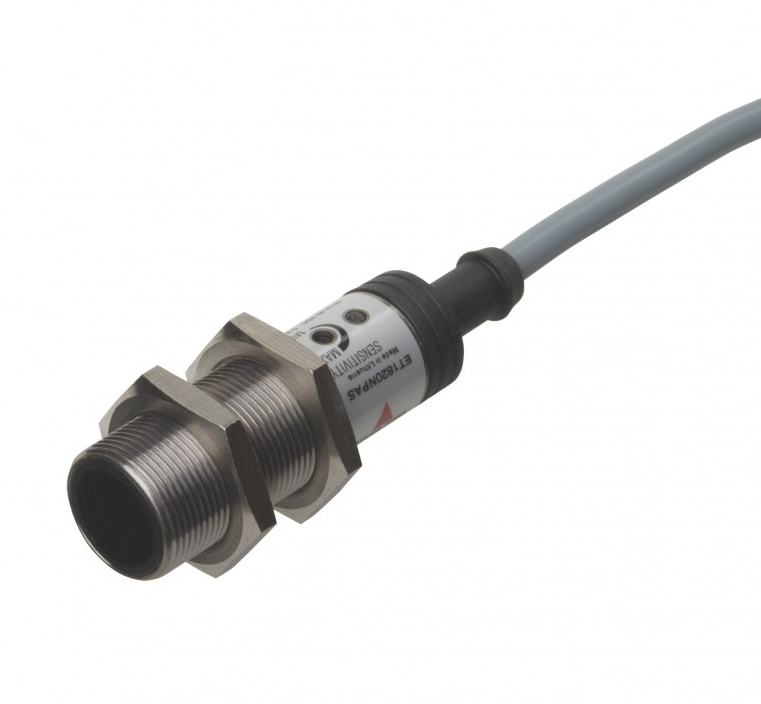

The ET1820 is a family of general purpose through-beam sensors in an industrial standard M18 nickel-plated brass housing for heavy duty applications.

They are useful for simple applications where a basic sensor provide adequate sensing performance.

The sensors are easy to adjust with a 270° single turn potentiometer.

The output is a 4-wire complementary (NO and NC) circuit with NPN (current sinking) or PNP (current sourcing) open collector transistor output.

Features

• Range: 20 m

• Adjustable sensitivity

• Modulated infrared light

• Make and break switching functions, NPN, PNP (200 mA)

• LED-indication for power supply ON (emitter) and target detected (receiver)

• Supply voltage: 10 to 40 VDC

• Heavy duty M18 metal housing, IP 67

• Cable and plug versions
