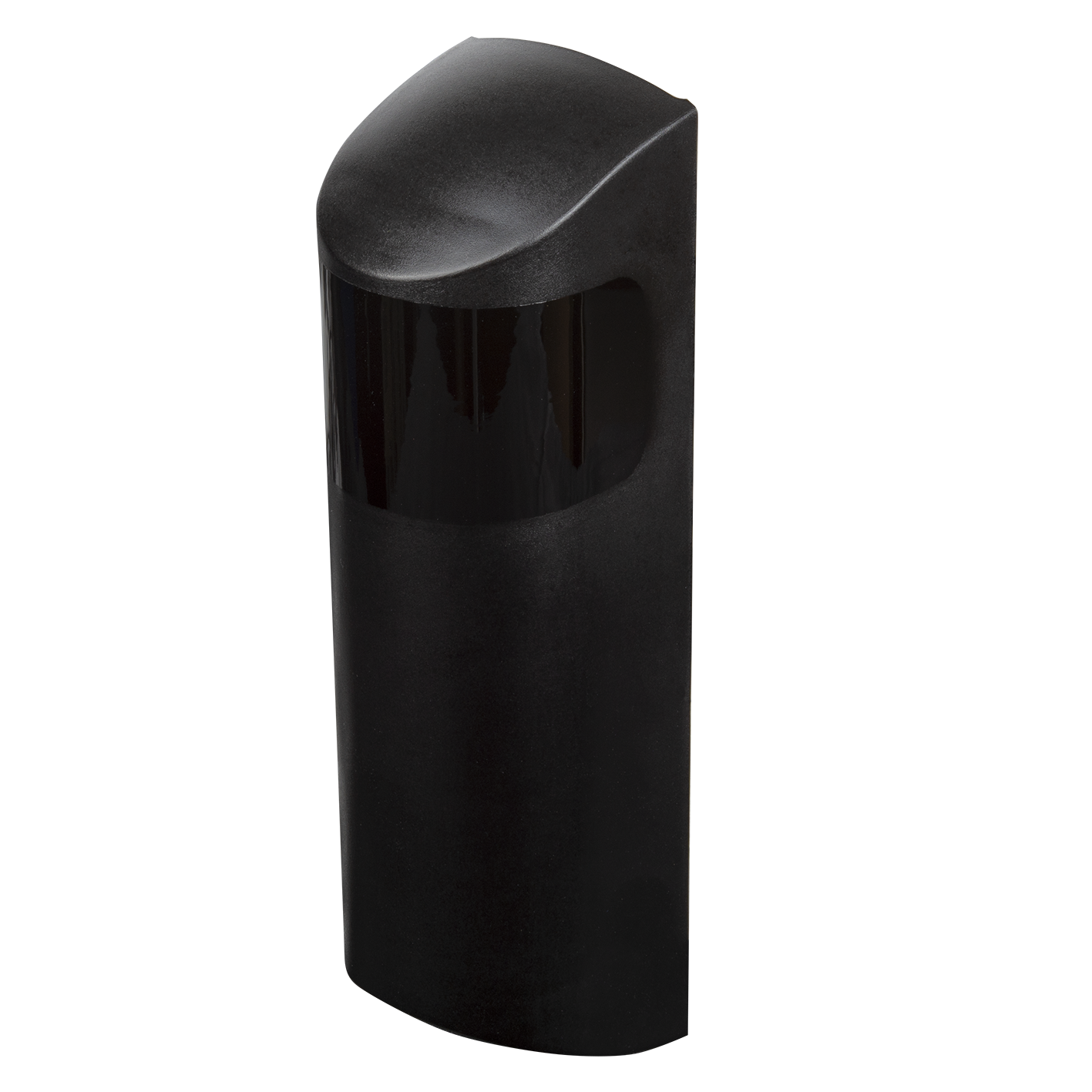

The PD180 sensor is developed specifically for the domestic and industrial door market.

The robust polycarbonate housing allows flexible installation as the lenses are adjustable both in horizontal and vertical direction. The sensor is easy to use and no sensitivity adjustments are necessary.

The aspherical lens design is superior to previous design of sensors with built-in parabolic reflectors that had corrosion and dust problems.

Increased safety by build-in: The emitter has a built-in test input designed to mute the emitter and thus evaluate the sensor function.

Test function is to be activated by the door controller or the door function can be activated by a limit switch, magnet sensor or a safety edge profile.

The receiver works with a power-supply from 12 to 24 VAC/DC and the emitter is designed to use 2 x ER14505 3.6 VDC size AA Lithium batteries.

Features

• Designed for industrial doors and gates

• ESPE type 2, Performance level C

• Range 15 m or 30 m

• Modulated, infrared light

• Supply voltage: 12 to 24 VAC/DC (receiver)

• Supply voltage: 2 x ER14505 3.6 VDC size AA Lithium batteries (emitter)

• SPST relay output

• SPST relay low battery

• LED for output indication

• Connection, terminal block

• Emitter test input

• CE (EN 12453, EN 12978) and UL325 approved
