Universal Analogue Output Module for DIN-Signals
Description

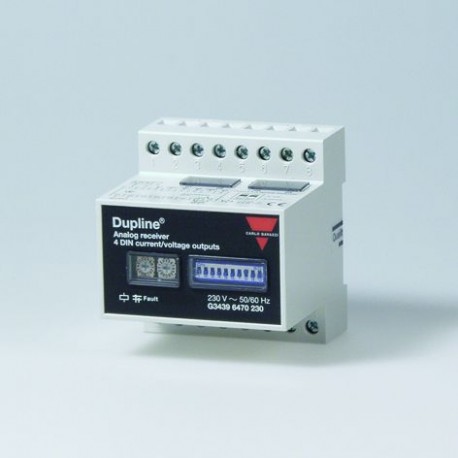

Dupline® 4 output universal analog output module with internal supply. The module receives signals on a digital format from Dupline® and converts them to analog outputs. The output type can be selected as 0-20 mA, 4-20 mA or 0-10 VDC for each output individually making a mix of analog output types on the same module possible.
The transmission format on Dupline® can be selected to fit the output module into existing installations, or simply to use the most suitable combination of resolution, signalling capacity and speed.
The formats are: 8-bit binary, AnaLink and 3 1/2 digit BCD (with or without multiplexing).
Features
• 4 analog outputs
• Outputs individually configurable for 0-20 mA, 4-20 mA or 0-10 VDC
• Selectable resolution: 1/1999 or 1/255 of full scale
• Selectable dataformat : 8-bit, AnaLink or 3 1/2 digit BCD
• EMC immunity according to EN50082-2 (industrial environment)
• DIN-rail mounting (EN 50022)
• Address-selection through rotary switches
• LED-indication for supply and Dupline® carrier
• LED-indication for invalid switch setting and faulty received data
• Watchdog output for faulty received data
• H4 housing
