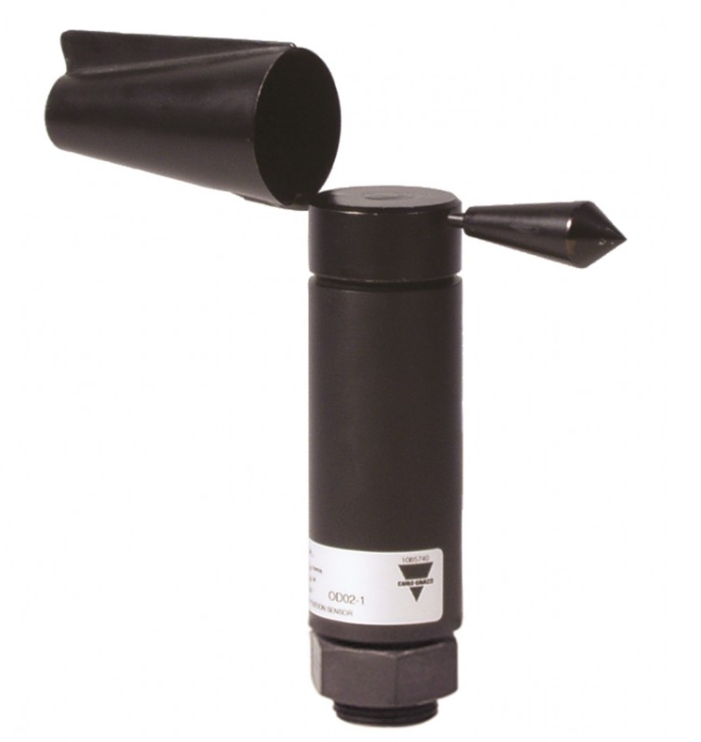

DWS-D-DAC13 is a relative wind vane designed mainly for the windmill industry for measurement of the relative wind direction.

The product contains both PNP- and NPN open collector outputs, in which a fixed current is switched according to the selected direction.

A built-in self-regulated heater reduces the risk of glazing. The heater is supplied separately, which makes it possible to control the heating.

The DWS-D-DAC13 is equipped with a specially designed protection mechanism, which protects the bearings and the electronic parts against dirt and humidity.

The body of the sensor is made of black PVC, and the rotor is produced in stainless steel.

Features

• Wind vane for relative wind direction

• Opto-electronic detection

• PNP- & NPN-open collector outputs in the same unit

• Indication of 0˚ and 90˚ intervals

• 10 to 28 VDC supply voltage

• All inputs and outputs are protected against reverse polarity and transients

• Built-in heater

• Dust sealing
