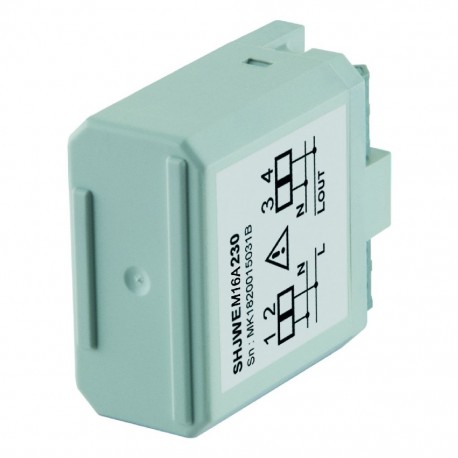

The SHJWEM16Axxx is a wireless energy meter. Single phase variables read: A, V, W, Wdmd, VA, var, PF. Energy measurements: total kWh. The measured values are then logged into the Sx2WEB24. It is part of the Smart Dupline® system and can be used with all the functions supported by the Sx2WEB24 master unit.

It must always be coupled to an SH2WBU230x module.

Features

• Wireless energy meter

• Designed to fit into the eurobox

• Power supply 230 VAC and 115 VAC

• Wireless transmission based on IEE802.15.4 @ 2.4 GHz

• Programmable routing function

• Load: 16A / 250 VAC

• Spring terminals

• Energy measurement: kWh

• Instantaneous variables readout: A, V, W, Wdmd, VA, var, PF
