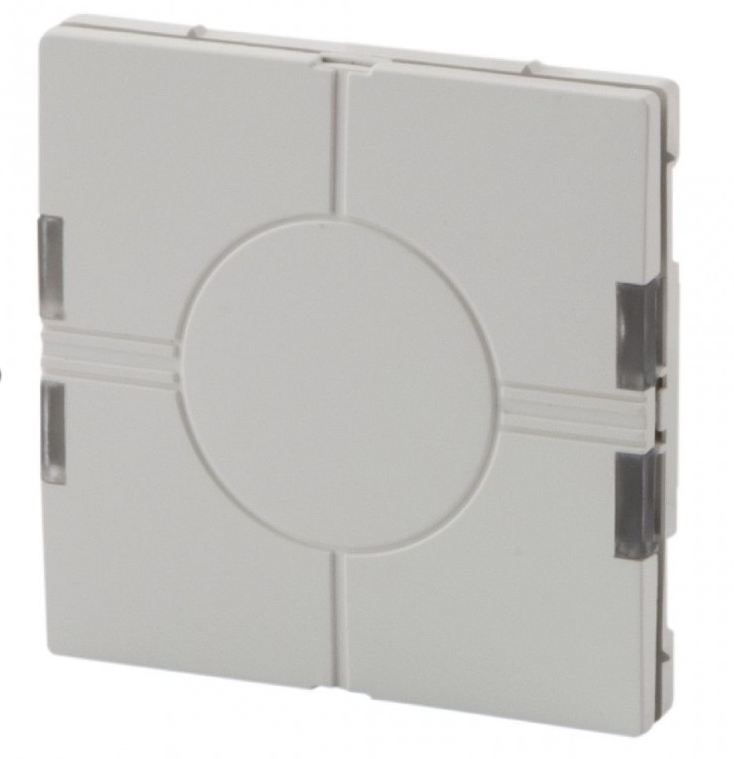

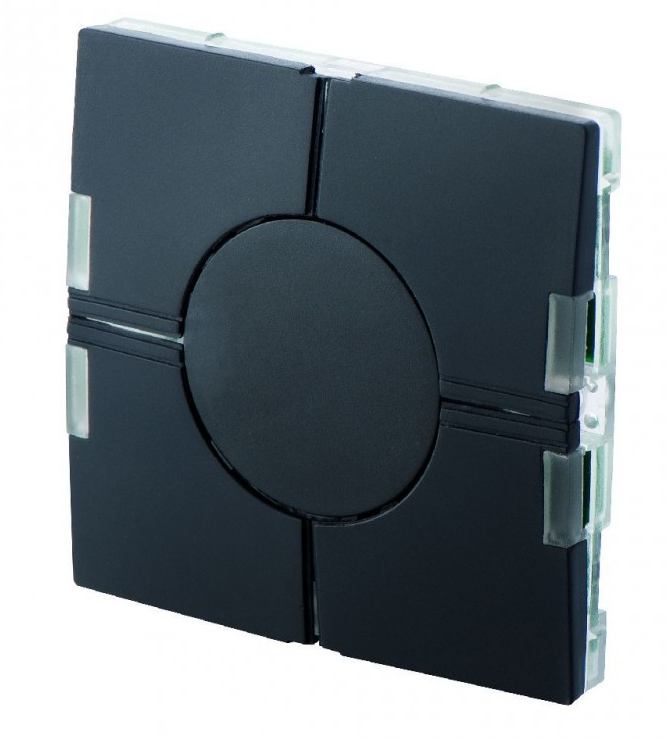

The SHE5XWLS4xxx is a wireless light switch with 4 buttons and 4 LED outputs.

It can be mounted with the Elko and Gira frames. This light switch is part of the smart Dupline concept for building automation applications and can be used to control lights, roller blinds and all other functions supported by the smart Dupline controller.

It is fully programmable via the Sx tool and must always be coupled to a SH2WBU230N module.

Benefits

• No wires. Wireless switch for any commercial or residential application.

• Fast and easy installation. Can be placed anywhere, no need for drilling.

• Improved energy saving. Stand-by mode to reduce battery consumption.

• Small impact on the wall. Flat design.

• Battery level indication. Red and blue LEDs.

• Two products in one. Temperature sensor is integrated, thus providing climate control functions.

Features

• Wireless transmission based on IEEE 802.15.4, at 2.4GHz.

• Transmission range: 100 m free air.

• Temperature measurement: -10° to +50°C.

• It can be used to control any function in the smart Dupline system.

• Up to 250 SHE5XWLS4xxx can be connected to one SH2WBU230N
