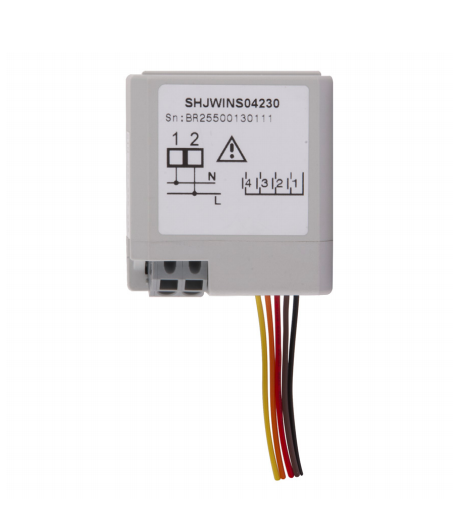

The SHJWINS04 is an input module for counting pulses from energy meters, water meters, gas meters etc, and also includes a people-counting function.

The count values are saved in the non-volatile memory of the module and transferred to the Sx2WEB controller wirelessly.

lt is also possible to use the inputs as standard digital inputs. This can be configured via the Sx2WEB tool for each of the inputs.

The compact size of the module makes it possible to fit it in a small junction box or other places where limited space is available.

This module is part of the smart Dupline® concept for building automation applications.

Benefits

• Fast and easy installation. In junction/wall box.

• Easy to use. Four programmable inputs – normally closed, normally open, pulse counter.

• Fully intelligent device. Counted values are stored in a non-volatile memory.

• Precise measurement. The pulse counter inputs are S0 class B.

• High working distance. The line of sight is 700 m, indoors 10 to 100 m. The range can be extended three times.

• Scalability. New modules can be progressively integrated into the system according to the application needs.

Features

• Wireless transmission based on IEEE 802.15.4, at 2.4GHz.

• Four programmable inputs

• Counts up to 99999999

• Automatic roll-over when max count is reached

• Option for counter reset

• Option for pre-scaler on count inputs
