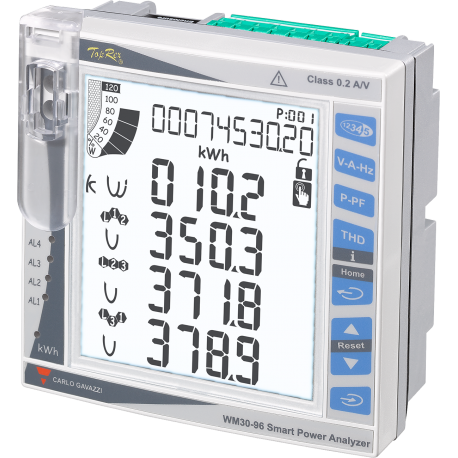

Three-phase smart power analyser with built-in advanced configuration system and LCD data displaying. Particularly recommended for the measurement of the main electrical variables. WM30 is based on a modular housing for panel mounting with IP65 (front) protection degree.

Moreover, the analyzer can be provided with digital outputs that can be either for pulse proportional to the active and reactive energy being measured or/and for alarm outputs.

The instrument can be equipped with the following modules: RS485/ RS232, Ethernet, BACnet-IP, BACnet MS/TP or Profibus DP V0 communication ports, pulse and alarm outputs. Parameters programming and data reading can be easily performed by means of UCS (Universal Configuration Software).

Features

• Class 0.5S (kWh) according to EN62053-22

• Class 2 (kvarh) according to EN62053-23

• Accuracy ±0.2% RDG (current/voltage)

• Instantaneous variables readout: 4×4 DGT

• Energies readout: 9+1 DGT

• System variables: VLL, VLN, A, VA, W, var, PF, Hz, Phase-sequence-asymmetry-loss.

• Single phase variables: VLL, VLN, AL, An (calculated), VA, W, var, PF

• Both system and single phase variables with average and max calculation

• Harmonic analysis (FFT) up to the 32nd harmonic (current and voltage)

• Energy measurements (imported/exported): total and partial kWh and kvarh

• Energy measurements according to ANSI C12.20 CA 0.5, ANSI C12.1

• Run hours counter (8+2 DGT)

• Real time clock function

• Application adaptable display and programming procedure (Easyprog function)

• Universal power supply: 24-48 VDC/AC, 100-240 VDC/AC

• Front dimensions: 96×96 mm

• Front protection degree: IP65, NEMA4X, NEMA12

• One RS232 and RS485 port (on request)

• Communication protocol: MODBUS-RTU

• MODBUS TCP/IP Ethernet port (on request)

• BACnet-IP over Ethernet port (on request)

• BACnet MS/TP over RS485, BTL approved (on request)

• Profibus DP V0 port, PROFIBUS Nutzerorganisation e.V. approved (on request)

• Up to 2 digital outputs (pulse, alarm, remote control) (on request)

• Up to 4 freely configurable virtual alarms

• Up to 2 analogue outputs (+20mA, +10VDC) (on request)
