Description
FEATURES
- Suitable for FCC,FIZ
- Confidency by metal case
- Excellent Filtering
- Low leakage
- Confidency by Epoxy Coverage
- Best characteristic in high voltage
APPLICATIONS
- AVR,UPS,INVERTER,CONVERTER ETC
- FACTORY AUTOMATION PRODUCT LINE
- MOTOR-DRIVEN Equipments
- OA Equipments
- Measuring Equipments
- Numerical Control Equipments

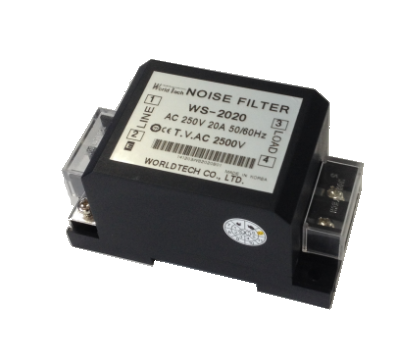

| MODEL | WS – 2005 | WS – 2006 | WS – 2010 | WS – 2015 | WS – 2020 | WS – 2030 |
| RATED CURRENT | 5A | 6A | 10A | 15A | 20A | 30A |
| RATED VOLTAGE | 250 VAC | |||||
| TEST VOLTAGE | 2,500V 10mA between I/O terminals and Earth for 1 minute | |||||
| INSULATION VOLTAGE | 500VDC 300Mohm between I/O terminals and case | |||||
| LEAKAGE CURRENT | 1mA Max | |||||
| TEMPERATURE RISE | 30oC Max | |||||
| OPERATING TEMPERATURE | -25 ~ +85oC | |||||
