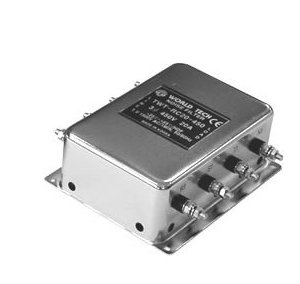

Description
FEATURES
- Suitable for FCC,FIZ
- Confidency by metal case
- Excellent Filtering
- Low leakage
- Confidency by Epoxy Coverage
- Best characteristic in high voltage
APPLICATIONS
- AVR,UPS,INVERTER,CONVERTER ETC
- FACTORY AUTOMATION PRODUCT LINE
- MOTOR-DRIVEN Equipments
- OA Equipments
- Measuring Equipments
- Numerical Control Equipments
| MODEL | WT – RC30 – SF |
| RATED CURRENT | 30A |
| RATED VOLTAGE | 250 VAC |
| TEST VOLTAGE | 2,500V 10mA between I/O terminals and Earth for 1 minute |
| INSULATION VOLTAGE | 500VDC 300Mohm between I/O terminals and case |
| LEAKAGE CURRENT | 1mA Max |
| TEMPERATURE RISE | 30oC Max |
| OPERATING TEMPERATURE | -25 ~ +85oC |
Specs: https://sclsystem.creaworld.sg/wp-content/uploads/2024/04/0017.pdf
