Description
Part Number | Description |
ZCI08 | DIN Socket for RCI002 relay without holding spring |

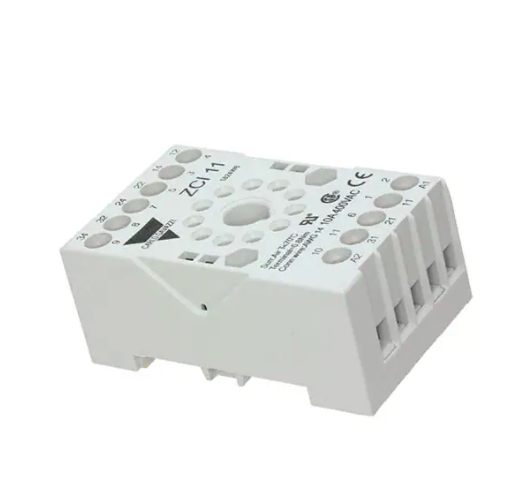

ZCI11 | DIN Socket for RCI003 relay without holding spring |
ZCIK53 | Metal holding spring for for ZCI08 and ZCI11 sockets |
Socket Specifications
Arrangement | 8-PIN, 11-PIN |
Insertion and extraction force | 30-130 N (8-PIN), 40-150 N (11-PIN) |
Max screw torque | 0.8Nm (7.1 lb-inch) |
Dielectric strength | > 2000V |
DIN-rail standard | 35mm |
Load capacity | 400VAC, 10A |
Operational temp. range | -40°C ~ +85°C |
Wire size range | 20-14 AWG / 0.5-2.5 mm2 |
