Description
Features
Rated voltage: 250VAC
Rated current: 6A
Insulation voltage: >3kV
Protection degree: IP 20 B
Socket material: PA66+GF (V0)
Socket colour: RAL 7035 / Pantone 1C
Contacts material: CuSN 6.5-0.1
Contacts surface: Tin-plated
Terminal type: Spring loaded terminal
Operating temperature: -40° to +70°C (-40 to 158°F)
Type Selection

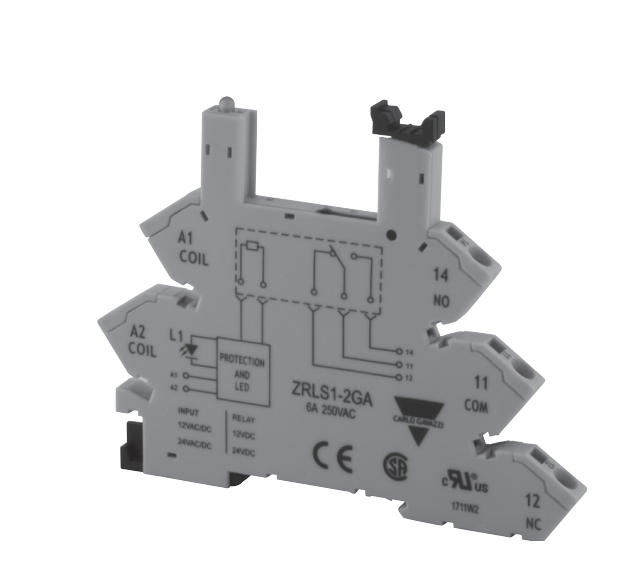

ZRLS1-2GA
Input: 6 to 24VAC/VDC
Coil rate*: 6 to 24VDC
ZRLS1-3GA
Input: 48 to 60VAC/VDC
Coil rate*: 48 to 60VDC
ZRLS1-4GA
Input: 110 to 125VAC/VDC
Coil rate*: 60VDC
ZRLS1-5GA
Input: 220 to 240VAC/VDC
Coil rate*: 60VDC
* The coil rate value is the socket output voltage. The relay to be fitted should have the same coil voltage.
